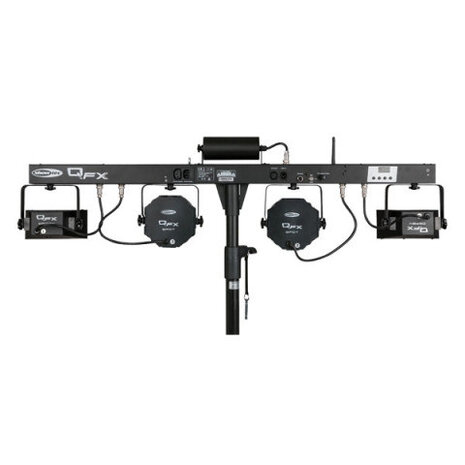

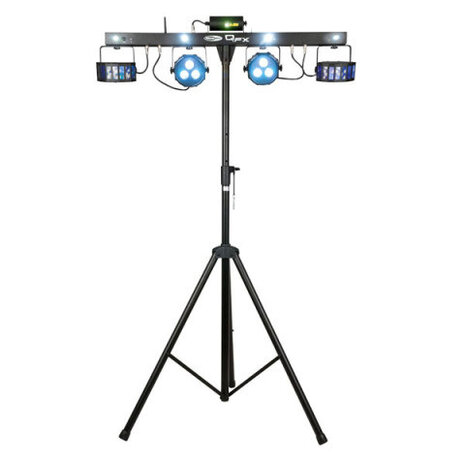

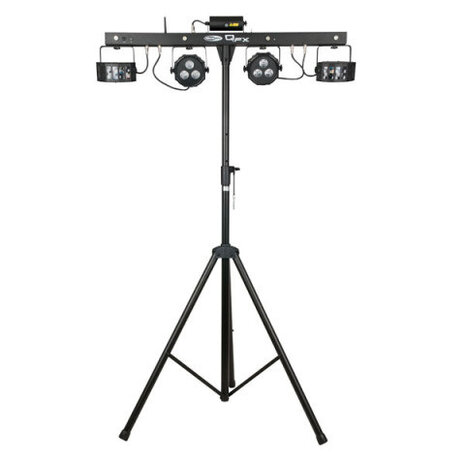

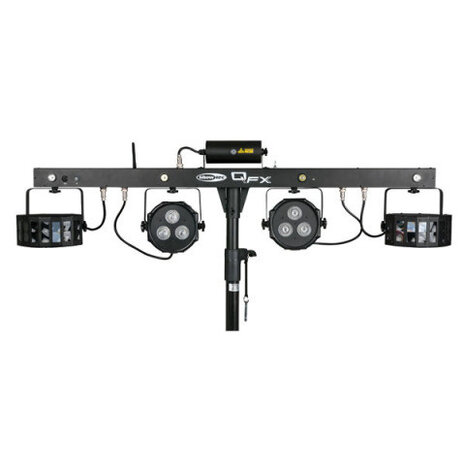

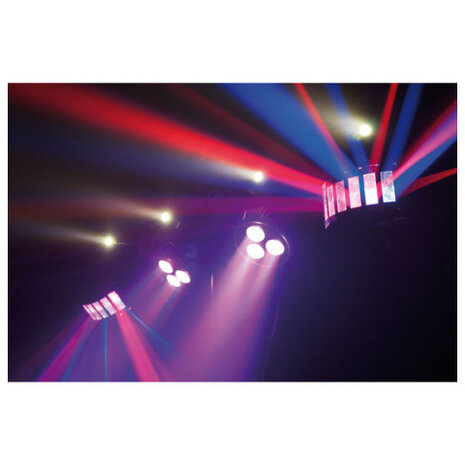

The Showtec QFX combines LED RGB spots, Derby fx, a Laser and a Strobe effect onto a single control bar. QFX maximizes convenience and ease of set-up and take-down for mobile entertainers who want to create a dynamic lighting experience for any event. The RG laser has many versatile grating & burst effects and is equipped with a key lock and remote interlock. The strobe has 4 sections with different preprogrammed patterns. The LED spot and Derby FX have RGB colors can be selected individually or in many preprogrammed combinations. The system is complete including a tripot stand, wireless footswitch, IR remote and carrying bags to protect the set during transport. The QFX controller bar features phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show.
Attention, the laser only works when the interlock connector is connected with a remote interlock (ordercode 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's an remote interlock is necessary for safety regulations.
Specifications
General
Power input: 100-240V 50/60z
Power consumption: 45W
Control: Auto, Sound, Master/Slave, DMX
DMX Channels: 3,5,9,27
Control Display: 4 Digits LED
Power Connection: IEC in- & output
Data Connector: 3 pole XLR (In/Out)
Dimensions Bar: 1185 x 110 x 387mm
Weight Bar: 6,6kg
Footswitch frequency: 433mHz
Footswitch unobstructed Range: 30m

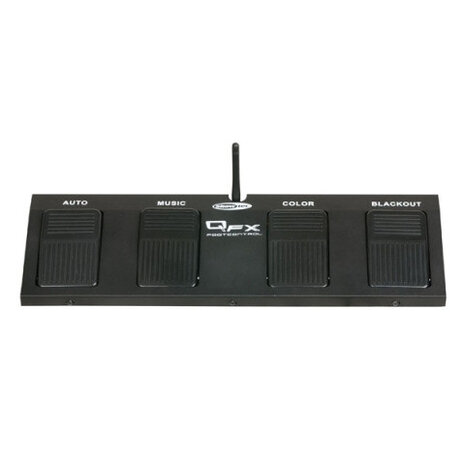

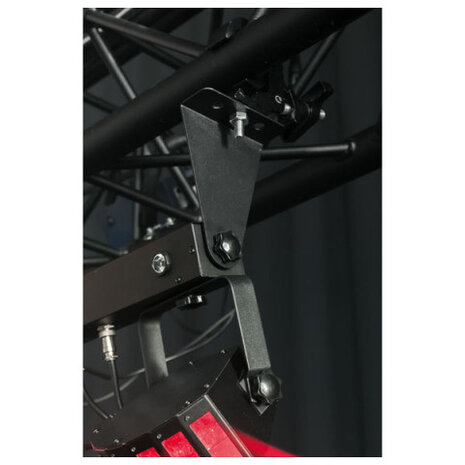

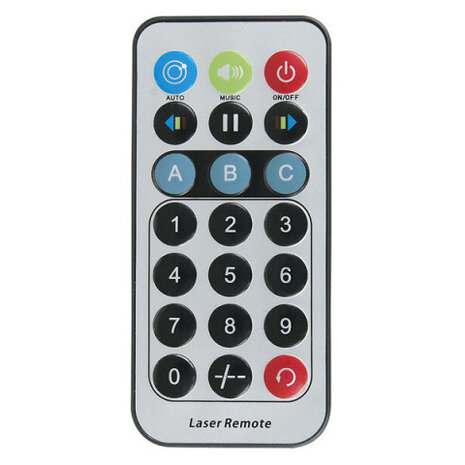

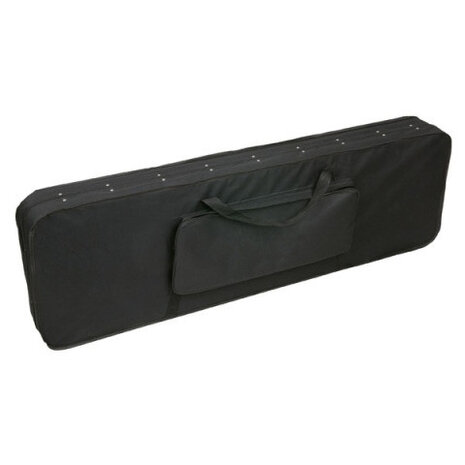

Incl. accessories: 2 Keys, Interlock test connector, IR remote, wireless foot controller, Tripod stand, carrying bags, hanging brackets
LED Spot
Lux@2m: 1205
Colors: RGB
Power: 6x3W 3-in-1
Current: 950mA
Beam angle: 24°
LED Derby
Colors: RGB
Power: 6x2W 3-in-1
Current: 600mA
Laser effect
Laser Color: Red, Green
Laser Power: 130mW (100mW 650nm Red, 30mW 532nm Green)
Laser Class: 2M
Safety Features: Key switch, Interlock, Safety eye
Laser Safety: EN/IEC 60825-1: 2007
Strobe effect
LED: 4x 1W White
Current: 300mA
Strobe: 0 – 18Hz
Tripot stand
Height: 1,5 – 2,5m
Footspace: 0,9m
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
